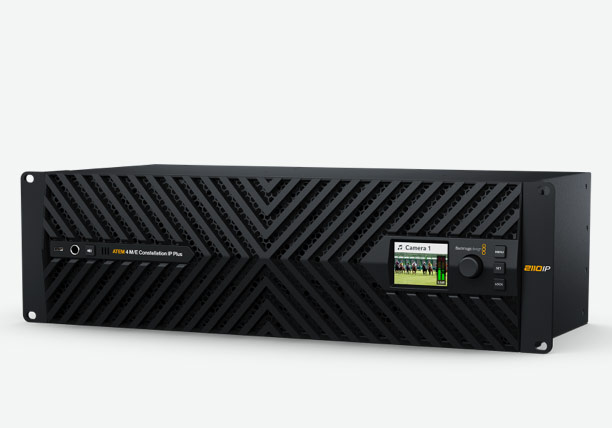

Blackmagic Design ATEM 4 M/E Constellation IP Plus 導播切換器

SKU: YM8247
(無評論) 評論
HK$106,450.00
運費:
保養: 1 年保養
庫存: 點擊查詢
正在添加到購物車… 該商品已添加
Blackmagic Design ATEM 4 M/E Constellation IP Plus 導播切換器

Blackmagic Design ATEM 4 M/E Constellation IP Plus 導播切換器

HK$106,450.00

Blackmagic Design ATEM 4 M/E Constellation IP Plus 導播切換器 是 Blackmagic Design 的 導播切換器,適合現場製作、直播及多訊號導播工作流程。產品重點包括64 IP 輸入, 52 輸出 with Multiview、Standards Converter per 輸入、Redundant 100G Fiber Ethernet Ports,適合需要穩定訊號處理及專業操作介面的製作環境。

此產品的設計重點包括 A new addition to the Constellation line, the ATEM 4 M/E Constellation IP Plus 切換器 from Blackmagic Design is a 3 RU live broadcast 機架安裝 切換器 that features 64 SMPTE 2110 IP video 輸入 and 52...

The ATEM 4 M/E Constellation IP Plus has an updated design to accommodate high-end broadcasters. It features front-to-back cooling with four fans that are extremely quiet. All connections feature full...

主要功能

  • 64 IP 輸入, 52 輸出 with Multiview
  • Standards Converter per 輸入
  • Redundant 100G Fiber Ethernet Ports
  • SMPTE 2110 Reference Ports

Mix Effects

Available M/E Layers4 M/E
Effect Types20x Luma Key 4x DVE 4x Transition 4x Stinger
Graphics Memory64 Images
Downstream Keys4x DVE
Generators21x Pattern
音訊 Mixing132-Channel Mixing

Processing

Switching TypeSoftware
Processing ResolutionUHD 4K at 60
Color Processing10-Bit 4:2:2

輸入

Number of 影像 輸入 Sources64
影像輸入16x QSFP28 母座
輸入影像格式Fiber (10-Bit 4:2:2) UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps

輸出

影像 輸出 Channels52
影像輸出16x QSFP28 母座
輸出影像格式Fiber (10-Bit 4:2:2) UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps
Multiview 輸出64-Way Multiview

Connectivity

Other I/O2x RJ45 Control Input/Output 2x RJ45 Reference Input/Output 1x RJ45 LAN Input/Output
影像 Standard ComplianceSMPTE ST-2110

Hardware

OS 相容性macOS 15 或更新版本 / Windows 11 或更新版本
Processor未有列明
Wireless

電源

電源 I/O2x IEC C14 Input
操作 Conditions32 to 104°F / 0 to 40°C 最高 90% Humidity
儲存 Conditions-4 to 140°F / -20 to 60°C 最高 90% Humidity
Rack Form Factor3 RU
尺寸19 x 8.66 x 5.22" / 48.3 x 22 x 13.26 cm
